Wardrobe Track Sizes

Compare the top and bottom track profiles used across our standard and Slimstyle sliding wardrobe door systems.

All dimensions are shown in millimetres. Measure the available jamb depth before ordering.

Standard double track

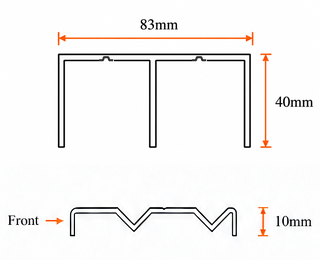

Standard double track: 83 millimetres wide, 40 millimetres top height and 10 millimetres bottom height.

Standard triple track

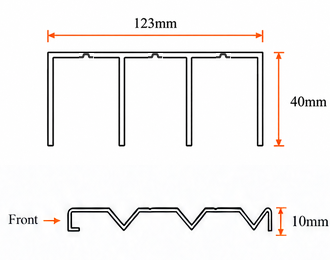

Standard triple track: 123 millimetres wide, 40 millimetres top height and 10 millimetres bottom height.

Slimstyle double track

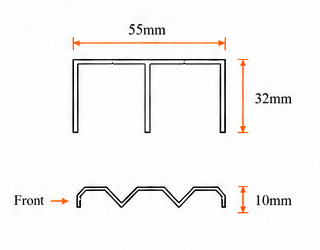

Slimstyle double track: 55 millimetres wide, 32 millimetres top height and 10 millimetres bottom height.

Slimstyle triple track

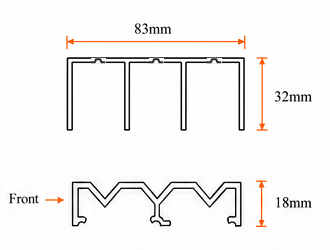

Slimstyle triple track: 83 millimetres wide, 32 millimetres top height and 18 millimetres bottom height.

Choosing the right profile

Compare your available jamb depth with the overall dimensions above. If you’re unsure which track matches your door system, contact us before ordering.
